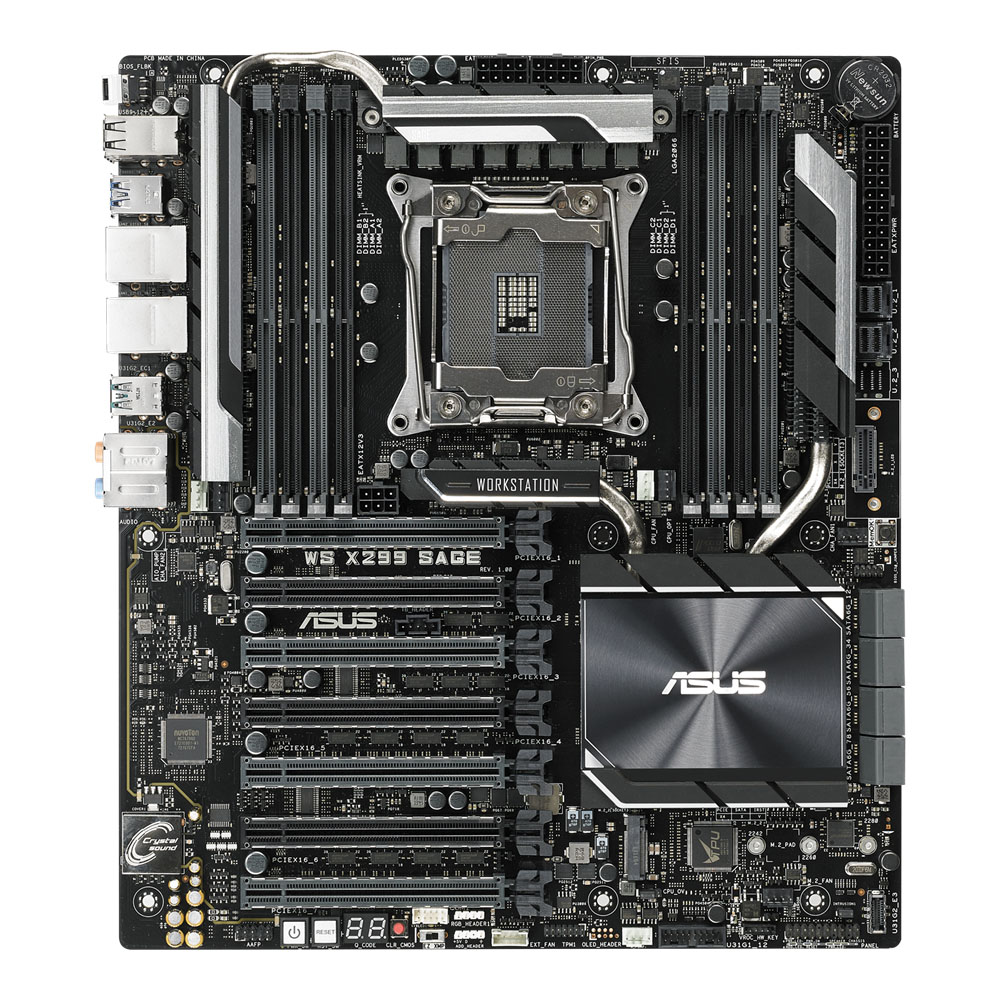

ASUS WS X299 SAGE

Intel® Socket 2066 Core™ X-Series Processors
Supports Intel® Virtual RAID on CPU (VROC)
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
* Refer to www.asus.com for CPU support list

Intel® X299

Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 256GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
* Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *²

Intel® X299 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)
2 x U.2 connector*¹
Support Raid 0, 1, 5, 10
Support Intel^® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Intel® Optane™ Memory Ready
Intel® Virtual RAID (VROC) support for CPU RAID

Intel® I210-AT, 1 x Gigabit LAN Controller(s)
Intel® I219-LM , 1 x Gigabit LAN Controller(s)

Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
– DTS Connect
– DTS Headphone:X
– Audio amplifier: Provides the highest-quality sound for headphone and speakers
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality

Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
Intel® X299 Chipset :
4 x USB 2.0 port(s) (4 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C^TM)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)

OC Design – ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
TPUFan Xpert4
– Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
ASUS EPU :
– EPU
ASUS Digital Power Design :
– Industry leading Digital 8  Phase CPU Power Design
– Industry leading Digital 2  Phase DRAM Power Design
AURA :
– Aura RGB Strip Headers
– Aura Addressable Strip Header(s)
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger+
– Crystal Sound 3
ASUS EZ DIY :
– ASUS CrashFree BIOS
– ASUS EZ Flash
– ASUS USB BIOS Flashback^®
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Code
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported

Windows® 10 64-bit

2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 (black)USB Type-C^TM
6 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback^®)
1 x Optical S/PDIF out
1 x USB BIOS Flashback^® Button(s)
1 x 8-channel Audio I/O

1 x Aura Addressable Strip Header(s)
2 x U.2 port
1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 6-pin ATX Power connector
2 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Water Pump header (4-pin)
1 x System panel connector
1 x Thermal sensor connector
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x MemOK! Button
1 x M.2 Fan Header

User´s manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector

CEB Form Factor
12  inch x 10.5  inch ( 30.5  cm x 26.7  cm )

Color Box(3-in-1)
Net Weight: 5.55kg
Gross Weight: 8.06kgBulk Pack(5-in-1)
Net Weight: 6.99kg
Gross Weight: 9.37kg

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
